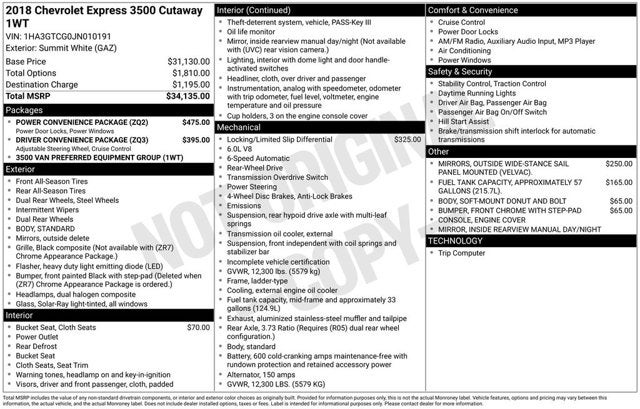

• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Assist handles, driver and right-front passenger
• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Satellite Radio or (YF1) RV Package.)
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers
• Lighting, interior with dome light and door handle-activated switches
• Mirror, inside rearview manual day/night (Not available with (UVC) rear vision camera.)
• Oil life monitor
• Power outlet, 120-volt
• Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
• GVWR, 12,300 lbs. (5579 kg)
• Incomplete vehicle certification
• Rear Axle, 3.73 Ratio (Requires (R05) dual rear wheel configuration.)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Air bag deactivation switch, frontal, passenger-side (Not available with (AJ3) frontal, driver-side only air bag. Always use safety belts and the correct child restraints. NOTE: Passenger seat is removed when ordered. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right-front passenger (Included and only available with (ZX2) driver and front passenger high-back bucket seats or (ZP0) driver and passenger temporary seats. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime running lamps
• Hill Start Assist
• StabiliTrak, traction assistance and vehicle stability enhancement system

AIR CONDITIONING, SINGLE-ZONE MANUAL ($0)

• (STD)

MIRROR, INSIDE REARVIEW MANUAL DAY/NIGHT ($0)

• (STD)

MIRRORS, OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC). ($250)

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle

FUEL TANK CAPACITY, APPROXIMATELY 57 GALLONS (215.7L). ($165)

• As part of the base design
• includes the auxiliary feed fuel fitting and in tank return line.

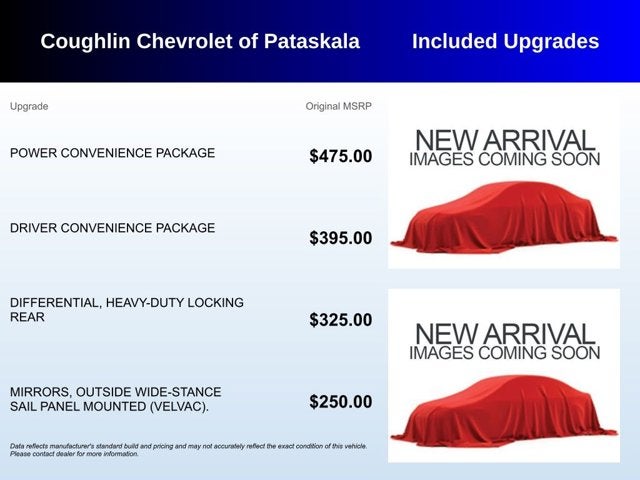

POWER CONVENIENCE PACKAGE ($475)

• includes (A31) power windows and (AU3) power door locks

3500 VAN PREFERRED EQUIPMENT GROUP ($0)

• Includes Standard Equipment

BODY, SOFT-MOUNT DONUT AND BOLT ($65)

• (for mounting Upfit body to chassis)

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS ($45)

• Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER ($0)

• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers (STD)

BODY, STANDARD ($0)

• (STD)

DRIVER CONVENIENCE PACKAGE ($395)

• includes Tilt-Wheel and (K34) cruise control

CONSOLE, ENGINE COVER ($20)

• with swing-out storage bin

ENGINE, VORTEC 6.0L V8 ($0)

• (341 hp [254.3 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (STD) (Includes external oil cooler.

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY ($0)

• electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking
• Powertrain Grade Braking
• and Tap-Up/Tap-Down Driver Shift Control (STD)

DOOR LOCKS, POWER ($250)

• with lock-out protection

GVWR, 12,300 LBS. (5579 KG) ($0)

• (STD)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET ($0)

• includes head restraints and vinyl or cloth trim (STD)

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)
• CRUISE CONTROL
• 3500 VAN PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• REAR AXLE 3.73 RATIO
• FUEL TANK CAPACITY APPROXIMATELY 57 GALLONS (215.7L). As part of the base design includes the auxiliary feed fuel fitting and in tank return line.
• MIRRORS OUTSIDE WIDE-STANCE SAIL PANEL MOUNTED (VELVAC). Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a wide stance. Mirrors can be utilized with bodies that are up to 96 inch width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle
• BODY STANDARD (STD)
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• CONSOLE ENGINE COVER with swing-out storage bin
• ENGINE VORTEC 6.0L V8 (341 hp [254.3 kW] @ 5400 rpm 373 lb-ft of torque [503.6 N-m] @ 4200 rpm) (STD) (Includes external oil cooler.
• PAINT SOLID
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (STD)
• DOOR LOCKS POWER with lock-out protection
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• BUMPER FRONT CHROME WITH STEP-PAD
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT (STD)
• POWER CONVENIENCE PACKAGE includes (A31) power windows and (AU3) power door locks
• WINDOWS POWER
• GVWR 12 300 LBS. (5579 KG) (STD)
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Dual Rear Wheels
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Dual Rear Wheels
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Bucket Seats
• A/C
• Bucket Seats
• Power Outlet
• Power Outlet
• Trip Computer
• Immobilizer
• Rear Defrost
• Daytime Running Lights
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Brakes
• Brake ABS System: 4-wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 118
• Cab to End of Frame (in): 186.5
• Frame Width, Rear (in): 34.8
• Front Bumper to Back of Cab (in): 98.7
• Ground Clearance, Front (in): 7.6
• Ground Clearance, Rear (in): 7
• Ground to Top of Frame (in): 23.31
• Height, Overall (in): 82.9
• Length, Overall w/o rear bumper (in): 284.8
• Overhang, Front (in): 39.7
• Wheelbase (in): 177
• Width, Max w/o mirrors (in): 94.53
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 57
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: 177.0" WB
• Vehicle Name: Chevrolet Express Commercial Cutaway
• Suspension
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 8600
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 8600
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Tires
• Front Tire Capacity (lbs): 2335
• Front Tire Order Code: XHF
• Front Tire Size: LT225/75R16E
• Rear Tire Capacity (lbs): 2335
• Rear Tire Order Code: YHF
• Rear Tire Size: LT225/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Weight Information
• Curb Weight - Front (lbs): 3146
• Curb Weight - Rear (lbs): 1883
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 8600
• Gross Combined Wt Rating (lbs): 16000
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
